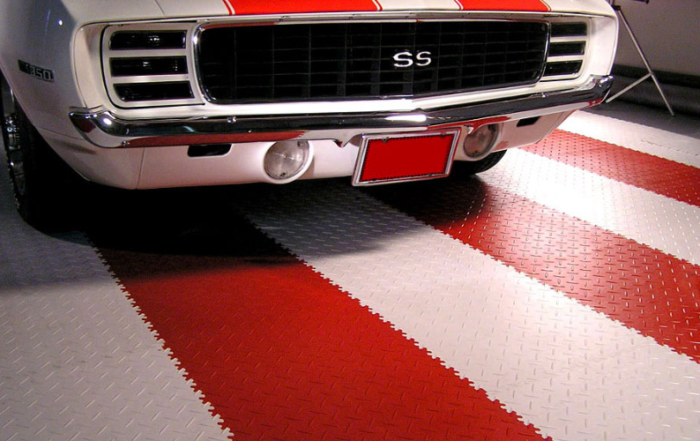

Modulfix pvc tiles for private garage floors

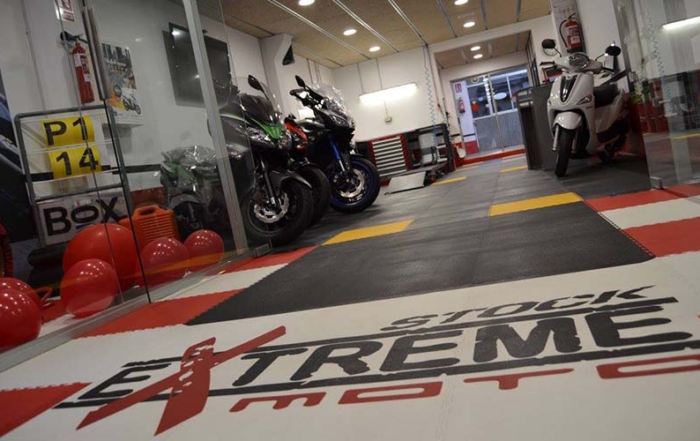

Motorcycle workshop with modulfix pvc floor tiles

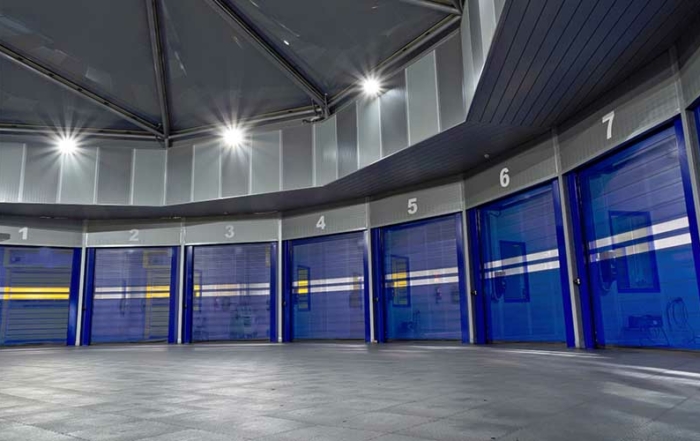

Modulfix workshop floor for commercial vehicles
Modulfix garage floor for car workshops

MODULFIX GARAGE

PVC tiles for workshops and garages

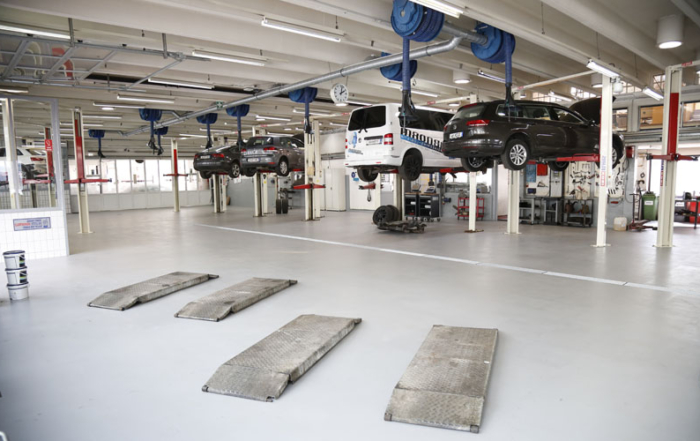

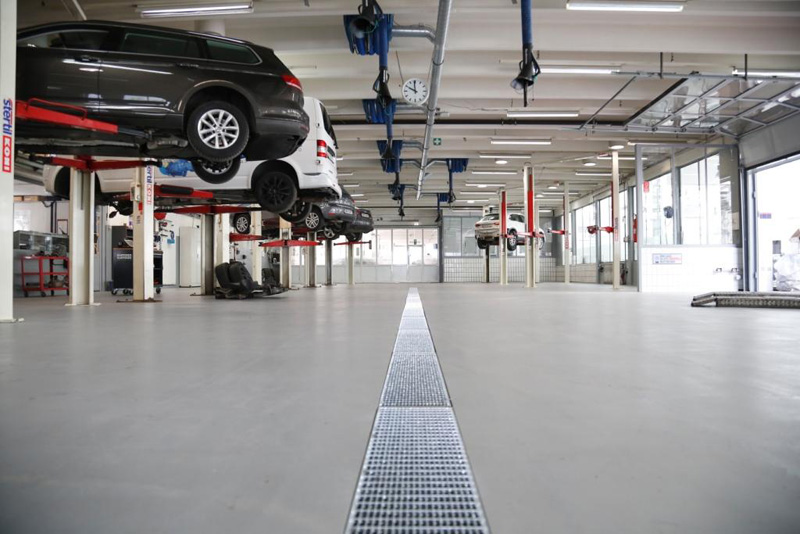

Modulfix X7 tile is the ideal floor for car, motorcycle or commercial vehicle workshops, but also in private garages. When a garage decides to change the floor of its premises, it faces several problems. The first of these is the scarcity of alternatives. Specifically, the options that are evaluated are terrazzo floors or continuous flooring (painted concrete or epoxy resins, for example).

Modulfix X7 tiles are much faster to lay than traditional flooring and in many cases can be installed by the client at their own pace. In addition, unlike epoxy or terrazzo floors, Modulfix X7 tiles do not break because they have a very high Shore hardness, and can withstand motorcycle stands or kickstands without any problem.

At the same time, it is a flexible floor, which facilitates its installation in screeds with defects and helps to cushion the fall of parts and tools, avoiding their breakage. Another advantage is that it is little affected by humidity or liquids in a workshop (brake fluids, battery acids, etc.), while continuous floors are more absorbent and contaminable.

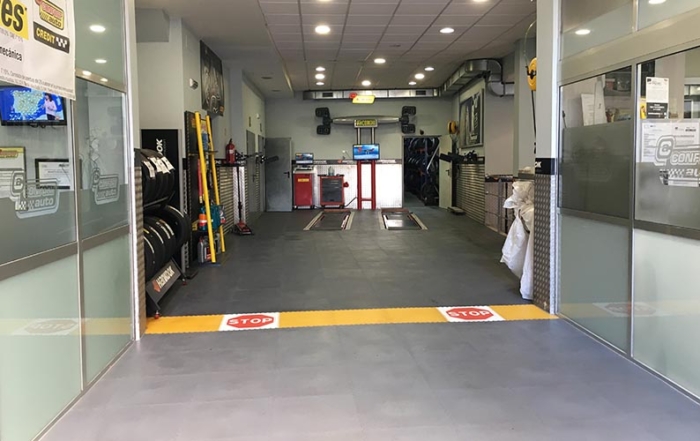

With the Modulfix X7 floor, the change of image of the workshop is immediate, and allows to achieve different designs according to the customer’s idea. With a single color, the floor looks homogeneous, continuous, and by mixing colors, a more striking floor is achieved. With our Moduprint printing system, any image can be silk-screened.

Another important aspect is that mechanics find the floor pleasant to walk on as it is less of a strain on the legs and the floor is not as cold in winter compared to painted concrete or terrazzo. R10 slip rating.

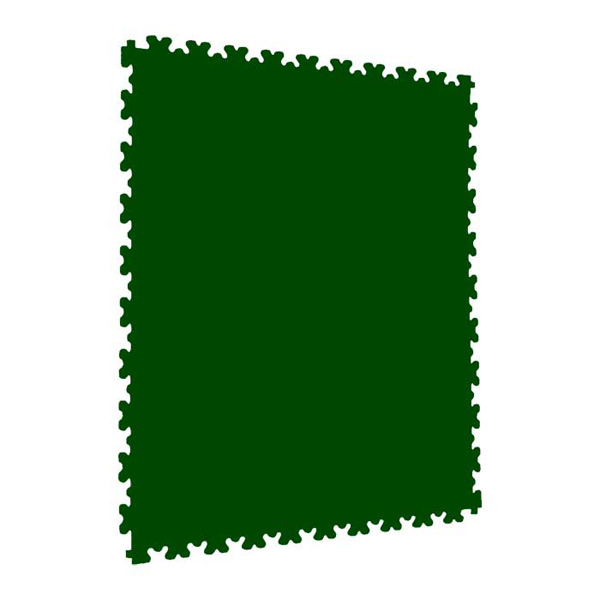

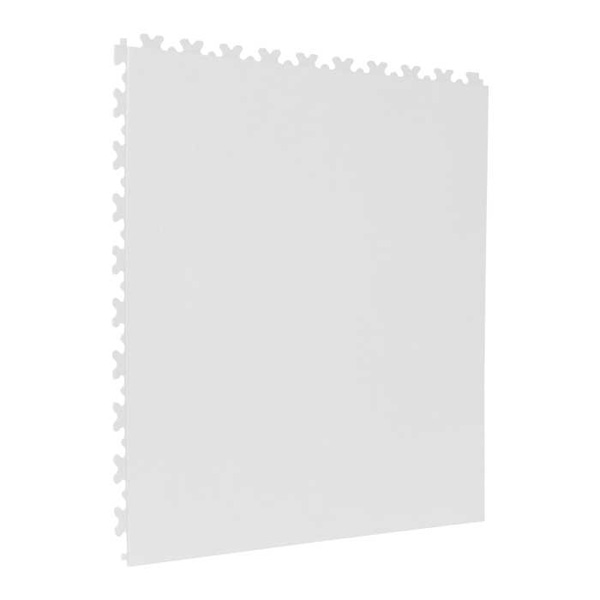

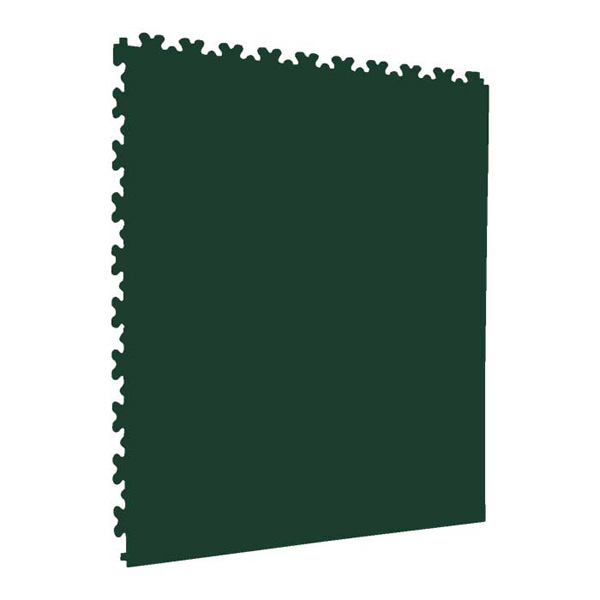

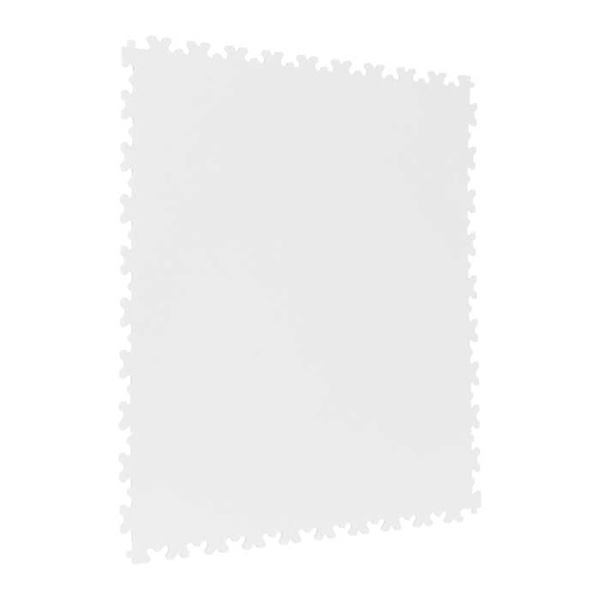

Available in 3 finishes: X7 Solid, X7 Metal, X7 Terra. Dimension: 50x50cm – Thickness 7mm.

Recommended soil for

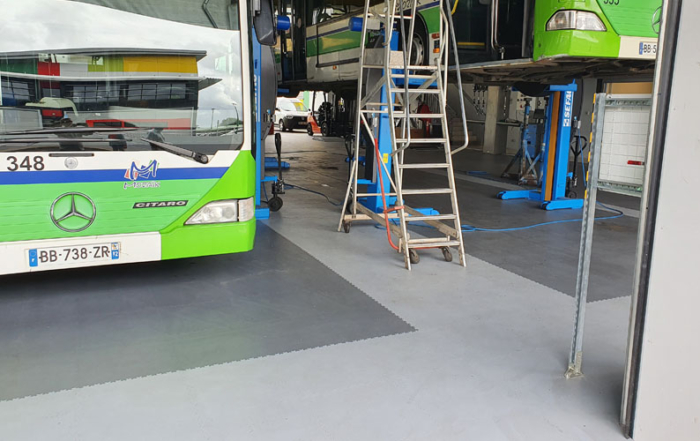

Flooring for car, motorcycle, truck and heavy vehicle workshops, private garages, rally boxes…

Why choose Modulfix Garage

01. Industrial strength, durability over time, does not break.
02. Easy and fast installation. Disassembly possible.
03. It is not affected by humidity or liquids in a workshop.
04. Change the image of the workshop to a cleaner and more organized one.

Range Dimension Thickness References
X7 Solid 50x50cm 7mm 11
X7 Metal 50x50cm 7mm 11
X7 Terra 50x50cm 7mm 11
Moduprint 50x50cm 7mm Silkscreen

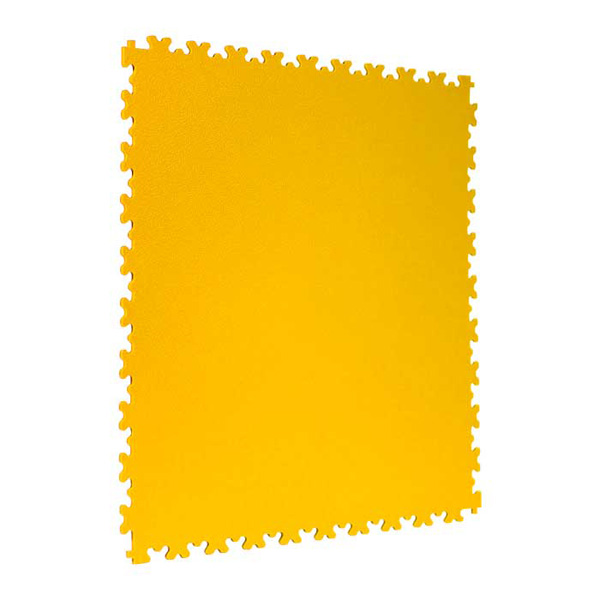

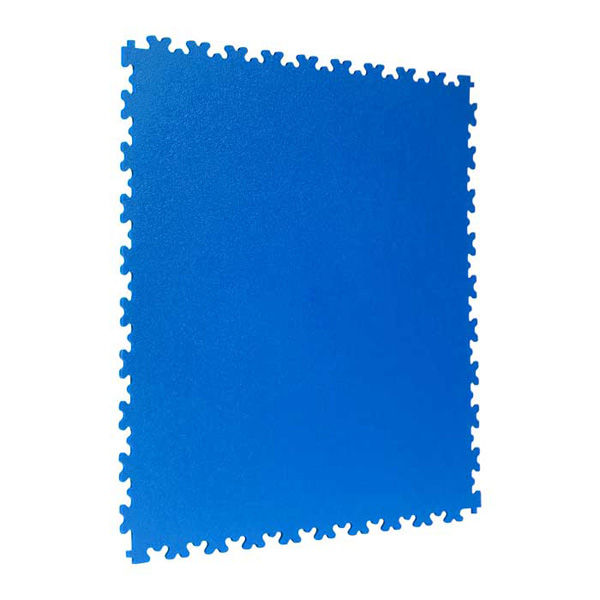

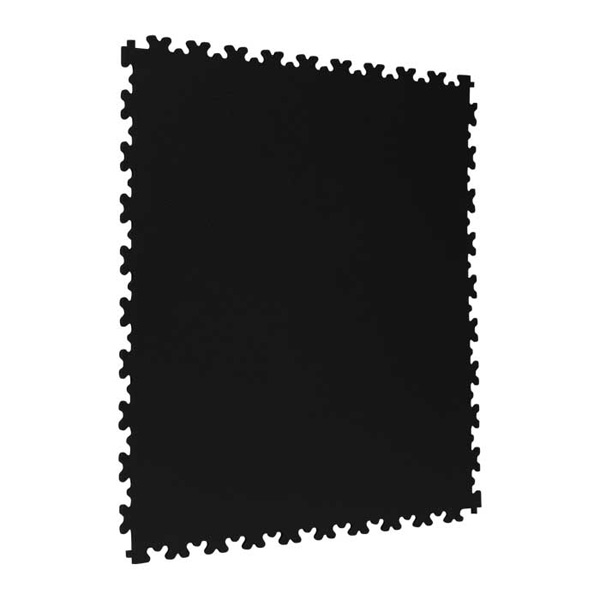

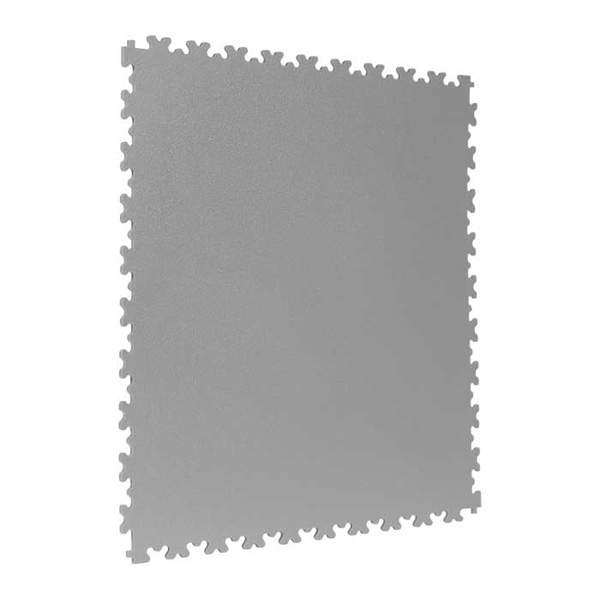

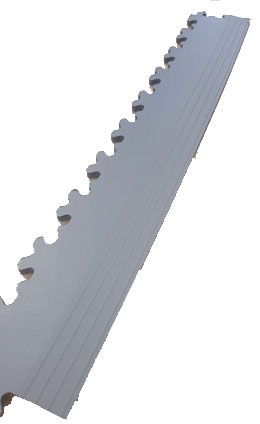

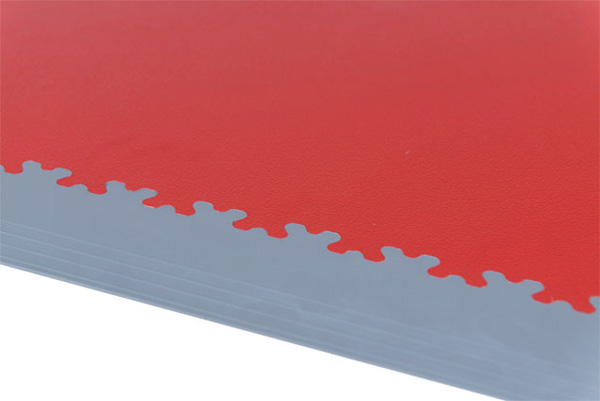

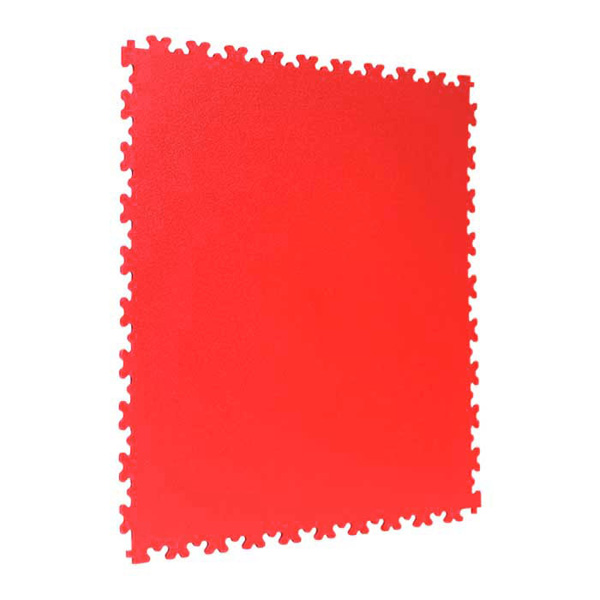

Slightly textured surface. Ramp system for level changes (see photo).

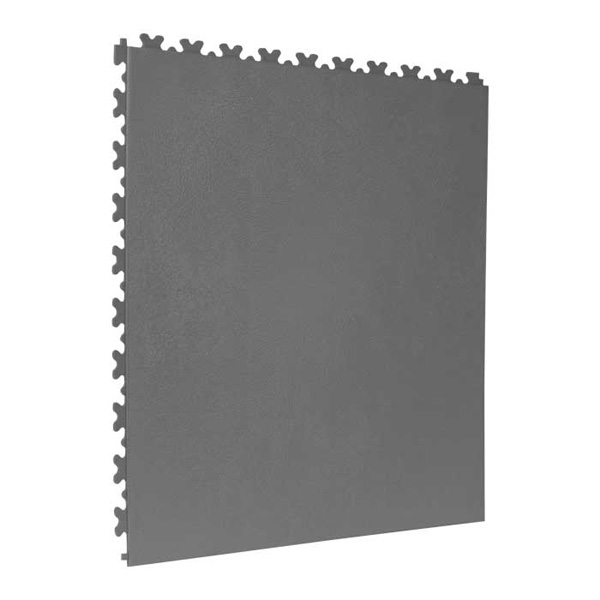

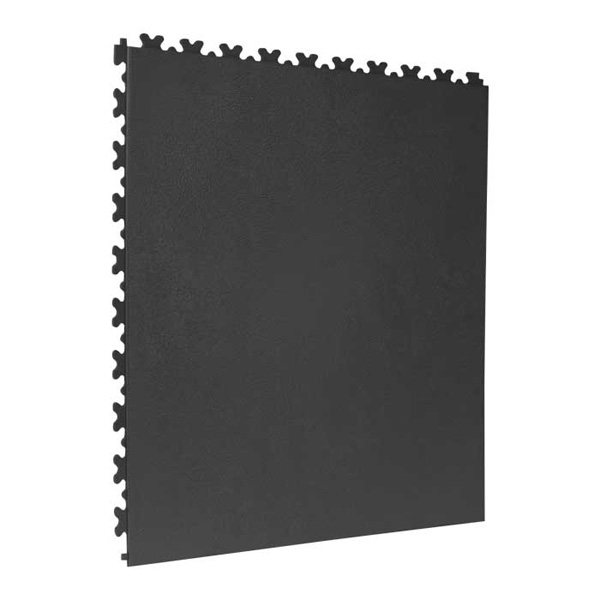

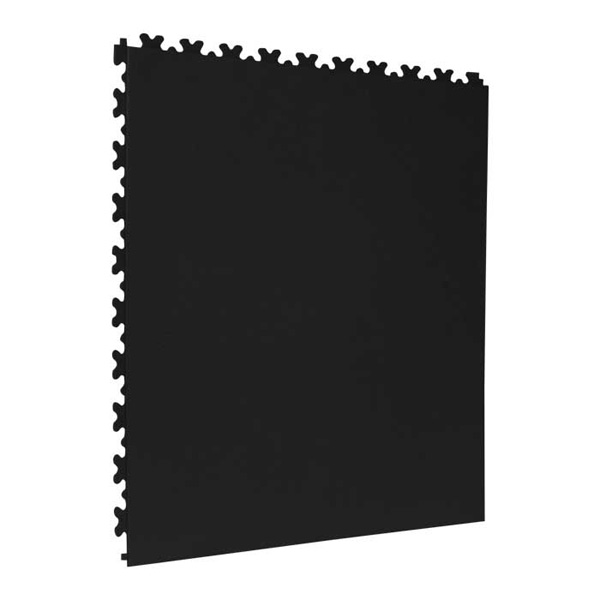

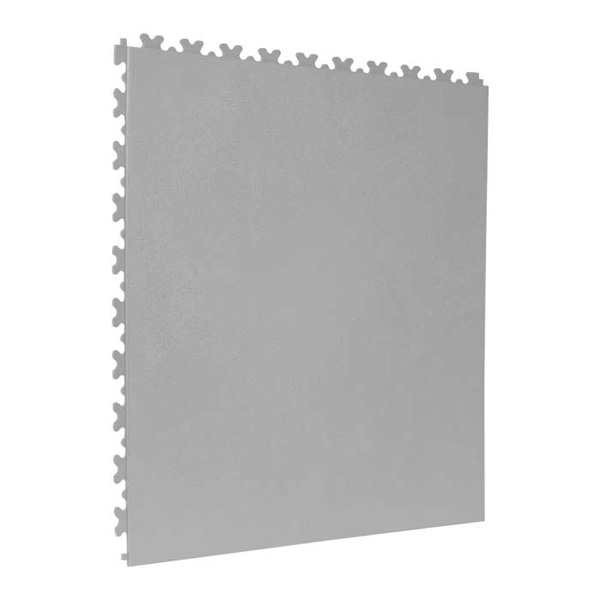

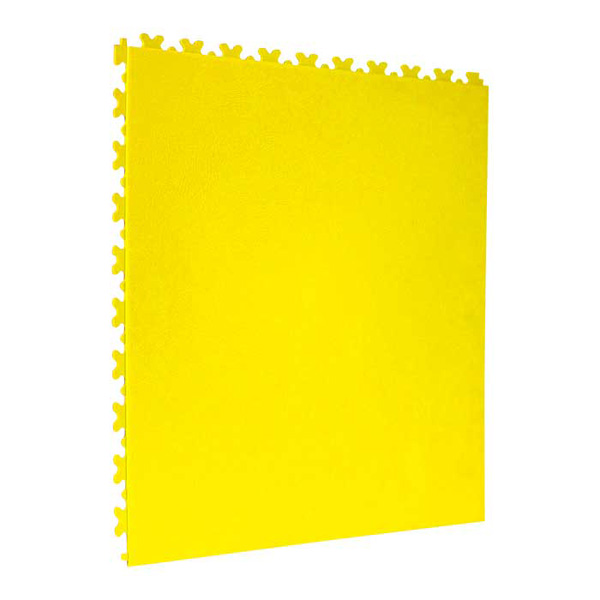

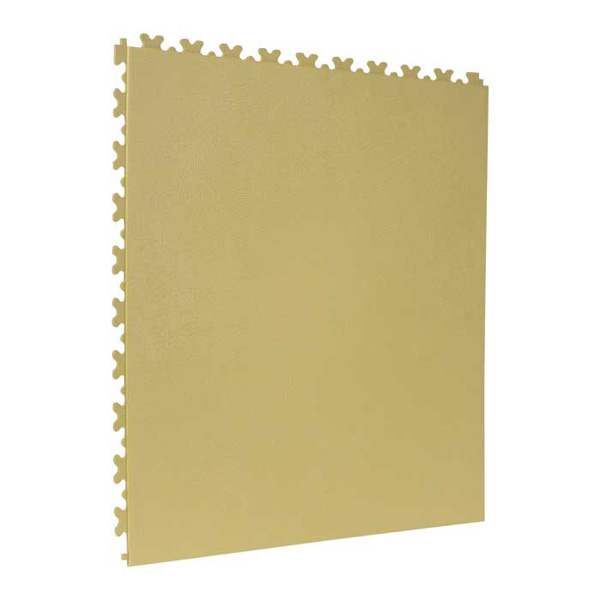

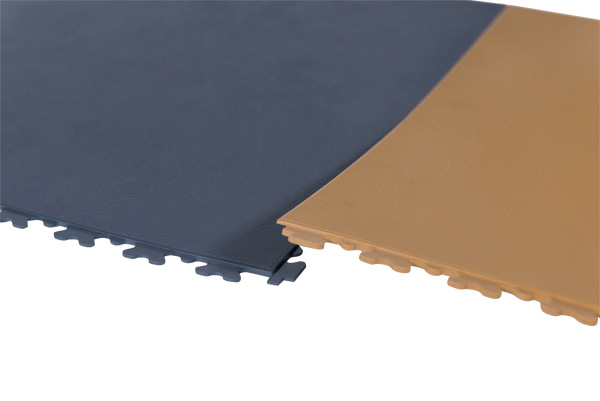

Leather-like surface, hidden joint, tile effect. Requires a flat screed. Recommended for private garages. 2m profile for level changes.

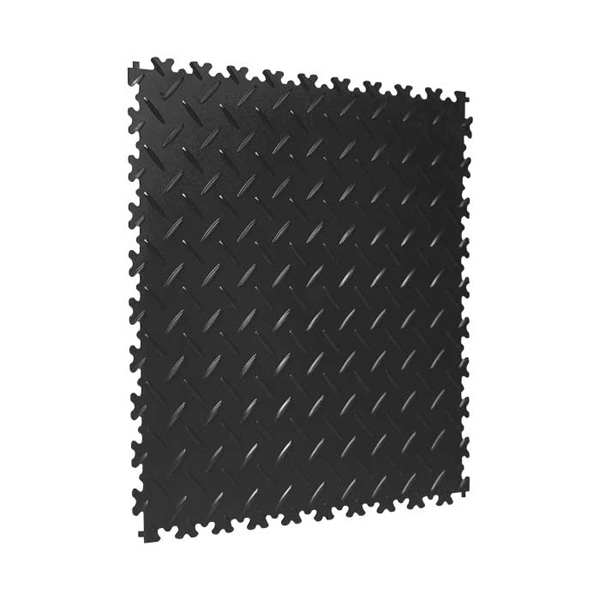

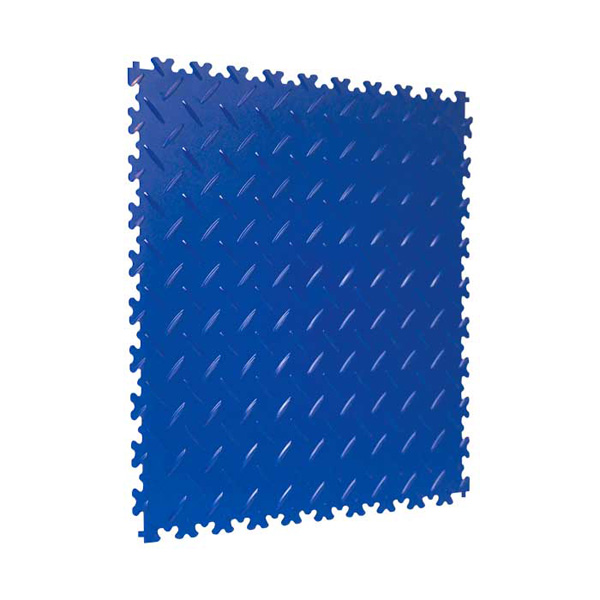

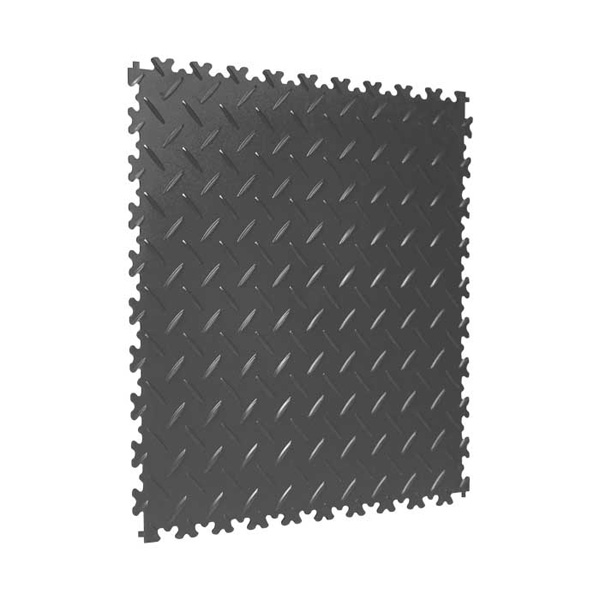

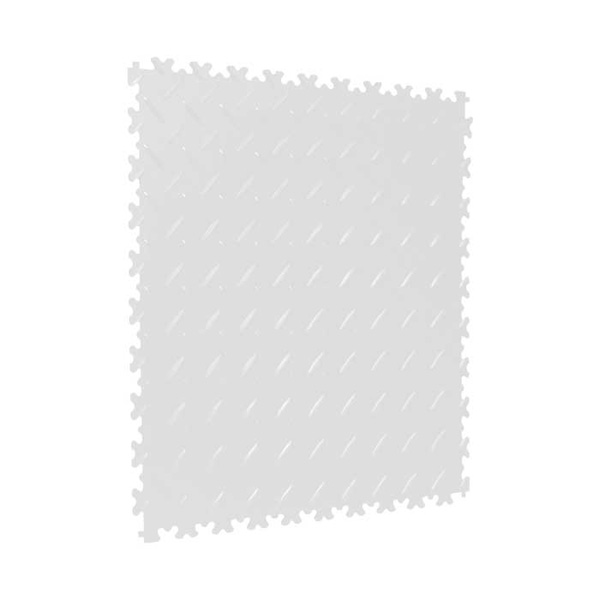

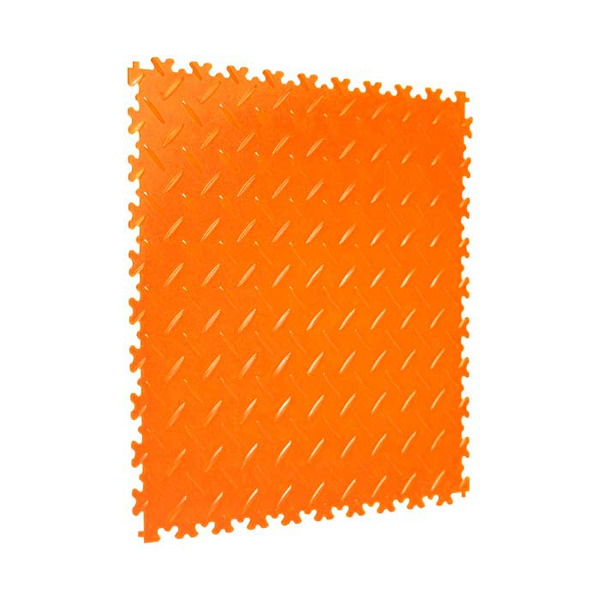

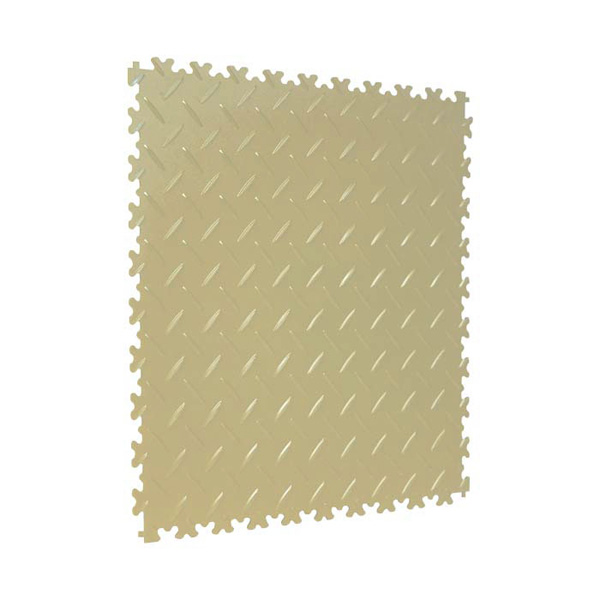

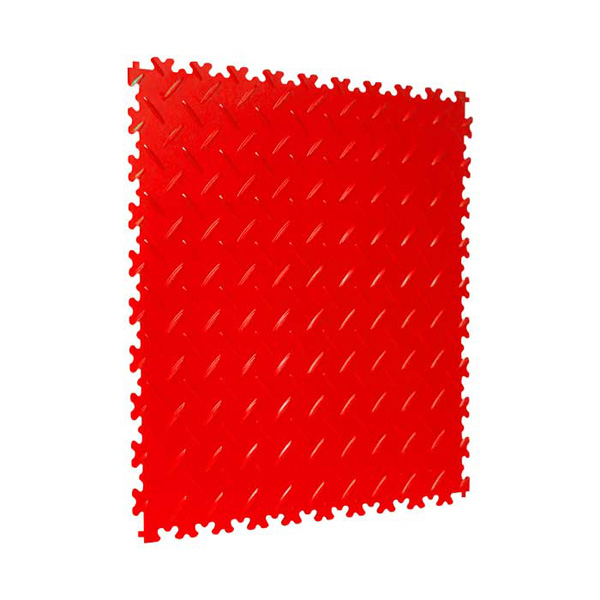

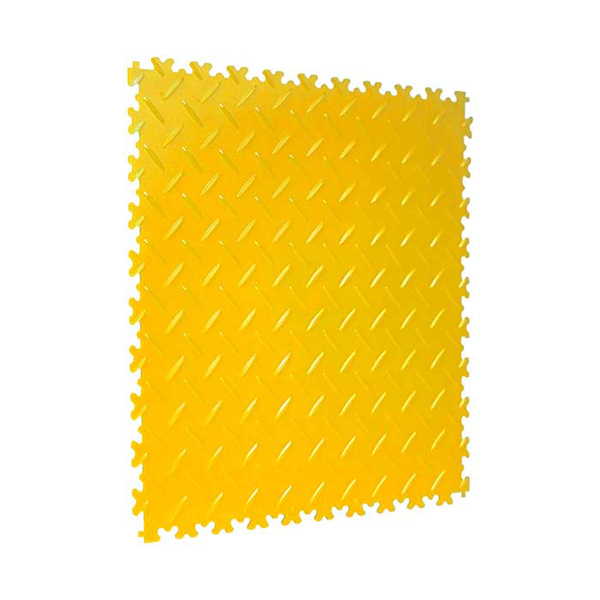

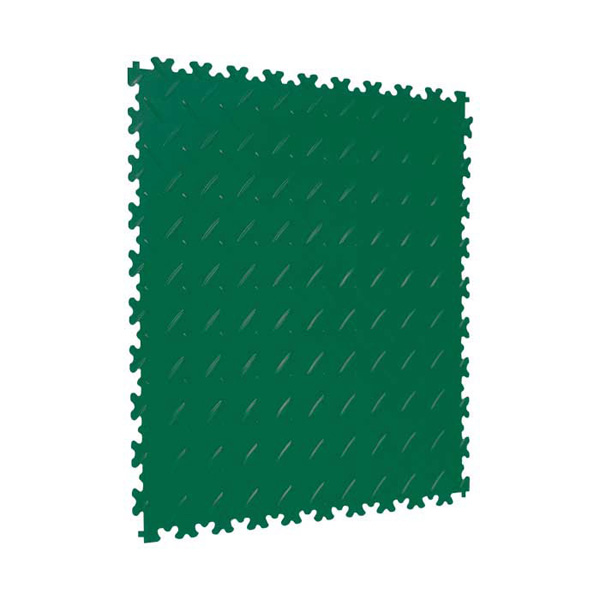

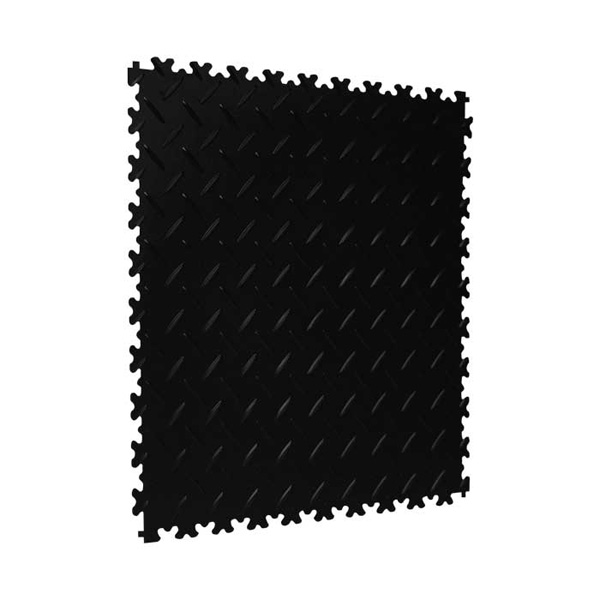

Tear plate type surface. Ramp system for level changes (see photo).

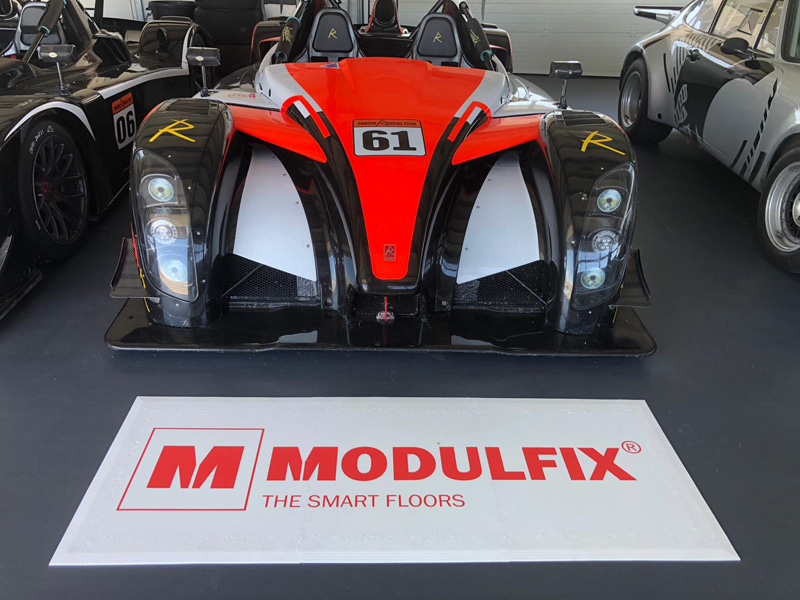

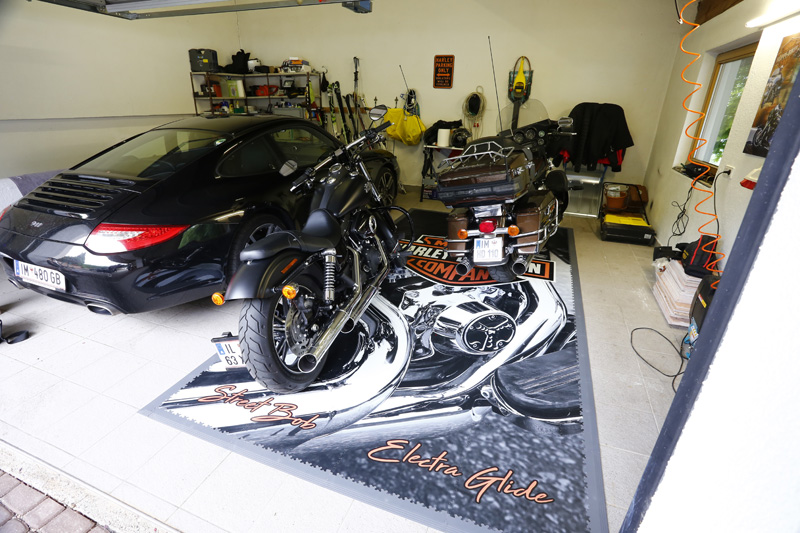

Thanks to our Moduprint printing system, we can screen print any image at the desired size (pictogram, logo…). An exceptional means of communication.

INSTALLATION AND MAINTENANCE MODULFIX GARAGE

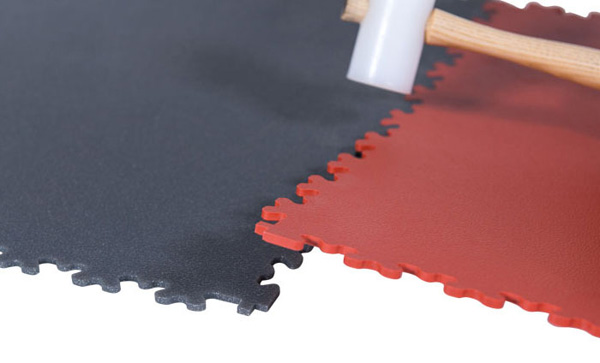

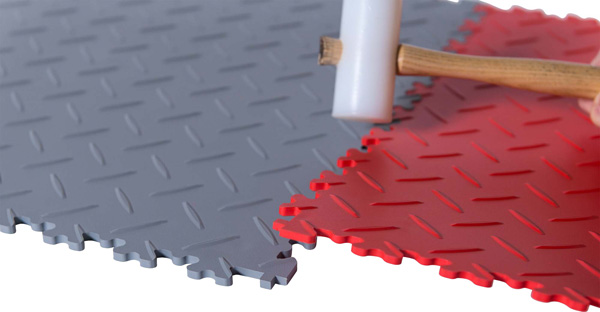

Modulfix tiles can be installed floating on all hard surfaces. Cuts are made with a circular saw and installation with a rubber mallet. It is recommended to glue areas exposed to direct sunlight (workshop entrance) or subject to strong temperature changes.

Modulfix tiles are cleaned with water and a neutral detergent or degreaser suitable for synthetic surfaces. It is possible to use a rotary machine with a not too aggressive brush (it is recommended to test the products and brushes before use).
The resistance of the tiles to chemicals is excellent, but it is recommended to make the pertinent tests before installation. Prolonged contact with certain liquids can stain the tile, it is important to clean as soon as possible in order to maintain the appearance of the tile. It is recommended to remove dust from the floor before cleaning.
