MODULFIX X7 ESD / X7 AS

Conductive and antistatic PVC tiles

Electrostatic charging can occur when two electrically charged objects come into contact and generate static electricity. static electricityThis is very common in the workplace due to electronic devices and employees. As a result of electrostatic discharge, environments operating electronic equipment and products are at risk of facing major problems, such as instantaneous and latent machine failures.

We have the perfect solution to this problem with Modulfix X7 ESD and Modulfix X7 AS tiles. These tiles are easy to install without previous experience thanks to their ingenious puzzle-like jointing system. Manufactured with high quality PVC, they are highlyresistant to impact and wear, and are not affected by industrial liquids. The tiles are manufactured in dimensions of 50×50 cm and a thickness of 7 mm. They are ideal for demanding industrial environments.

Modulfix X7 ESD, conductive tile

Modulfix X7 ESD conductive tile is specifically designed to discharge electrostatic charges with grounding, which is essential to protect sensitive electronic equipment and prevent possible damage (10.4 to 10.6 Ω resistance).

Modulfix X7 AS, antistatic carpet tile

On the other hand, Modulfix X7 AS tile has anti-static properties, which means that prevents the accumulation of static electricity on the surface. Antistatic flooring is created with a top layer that controls and dissolves static across the entire surface to prevent static buildup that causes a discharge. Antistatic flooring is suitable for more domestic static electrical build-up that causes shock, is less of a risk and more of a nuisance. The antistatic floor provides a range of resistance between 10⁹ and 10¹¹¹. Ωwhich means that the soil will not generate static.

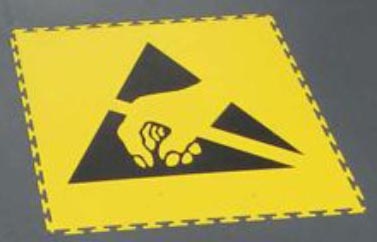

Choosing Modulfix X7 ESD and Modulfix X7 AS ensures ideal electrostatic protection for sensitive equipment and prevention of risks related to electrostatic discharges. These tiles are designed to withstand the most demanding industrial conditions, providing an aesthetic enhancement of the environment with the possibility of customization with safety pictograms.

Recommended tiles for

Industrial buildings with Electronic equipment, electronic laboratories, electronic components production areas, data centers, servers, areas where flammable materials are handled, electronic repair shops, industries requiring anti-static properties…

Why choose Modulfix X7 ESD / AS

01. Excellent antistatic protection.
02. Industrial strength and durability.
03. Easy and fast installation. Disassembly possible.
04. It is not affected by humidity or liquids in an industrial site.
05. Guarantees safety and prevention.

Range Dimension Thickness References
Modulfix X7 AS 50x50cm 7mm 2
Modulfix X7 ESD 50x50cm 7mm 2

INSTALLATION AND MAINTENANCE MODULFIX INDUSTRY

Modulfix tiles can be installed floating on all hard surfaces. Cuts are made with a circular saw and installation with a rubber mallet. It is recommended to glue down areas exposed to direct sunlight (open entrances), subject to strong temperature changes or where heavy vehicles circulate or turn.

The Modulfix X7 ESD tile will be placed on top of a black conductive tape mesh and a grounded tile is installed every 40m2 (see photos below).

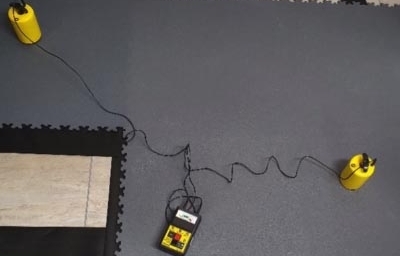

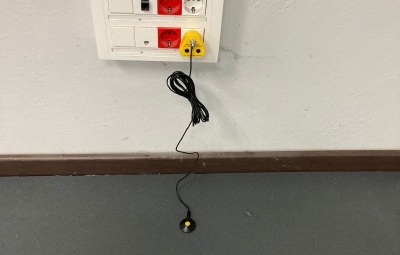

measurement-conductive-tile-modulfix-esd ground-conductive-ground-connection-ground-connection-modulfix-x7-en-esd

Modulfix tiles are cleaned with water and a neutral detergent or degreaser suitable for synthetic surfaces (a soap with conductive properties can be used). It is possible to use a rotary machine with a not too aggressive brush (it is recommended to test the products and brushes before use). Tile resistance to chemicals is excellent, but testing is recommended prior to installation. Prolonged contact with certain liquids can stain the tile, it is important to clean as soon as possible in order to maintain the appearance of the tile. It is recommended to remove dust from the floor before cleaning.
